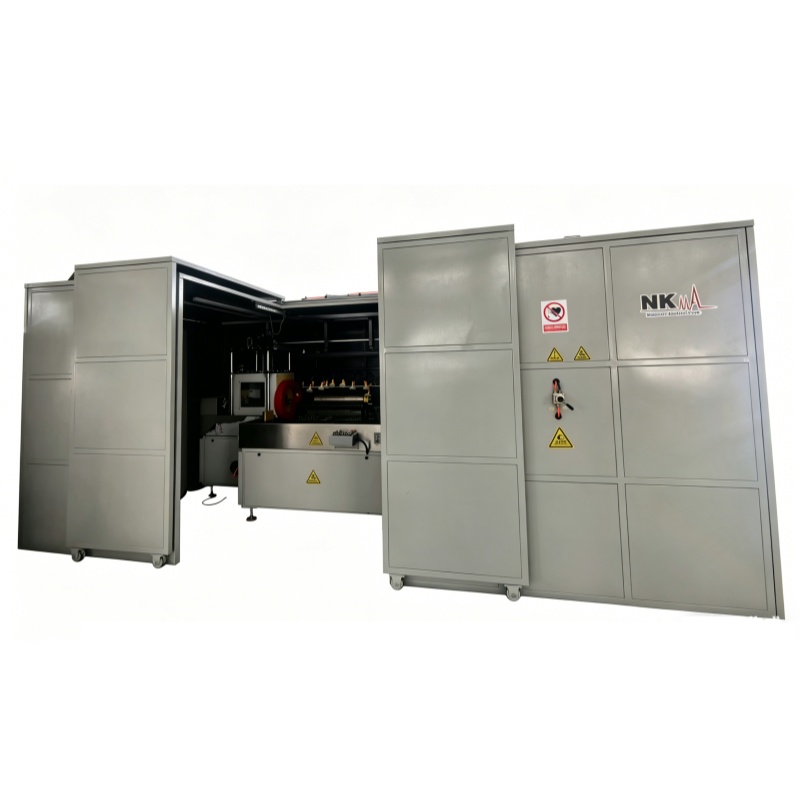

Rod Valve Magnetic Particle Inspection Machine
Fluorescent valve stem magnetic particle inspection machine for high-precision defect detection in industrial quality control systems.
- High-sensitivity fluorescent magnetic particle inspection for detecting surface and near-surface defects on valve stems and rods

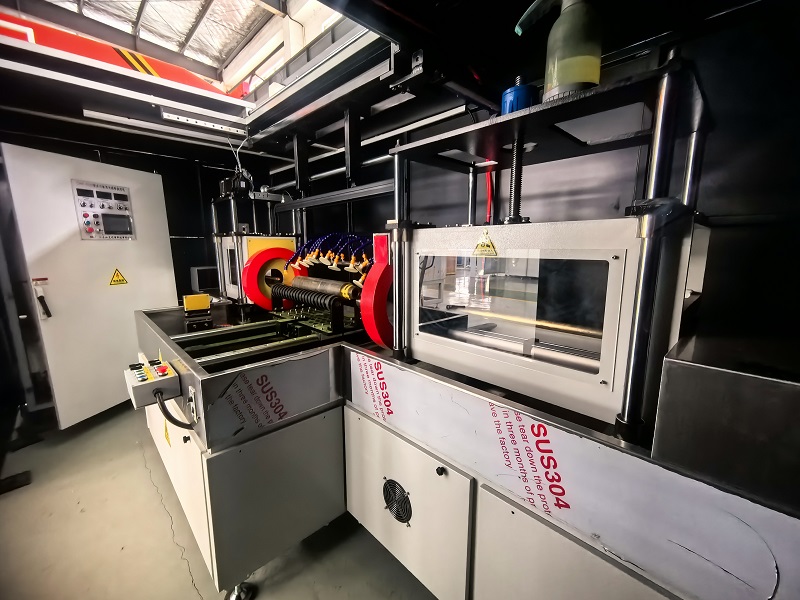

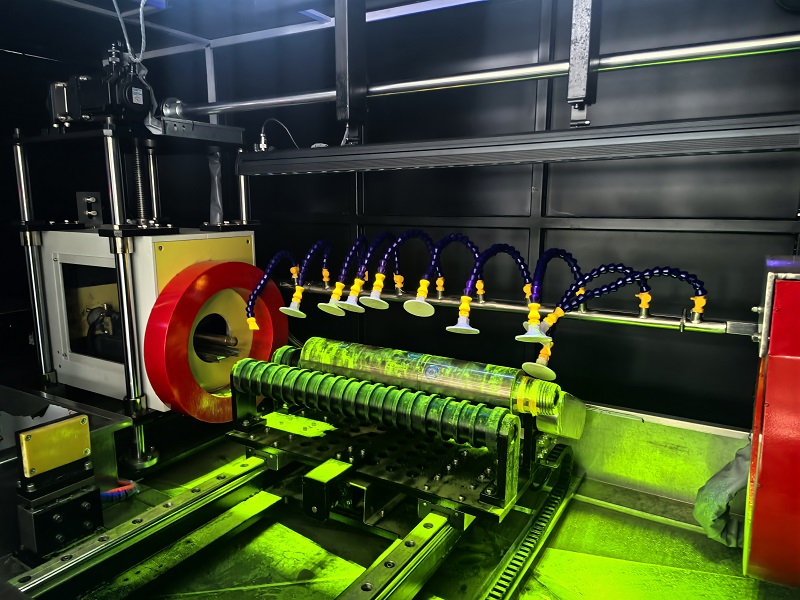

- Coil and head magnetization system ensures full coverage and reliable crack detection

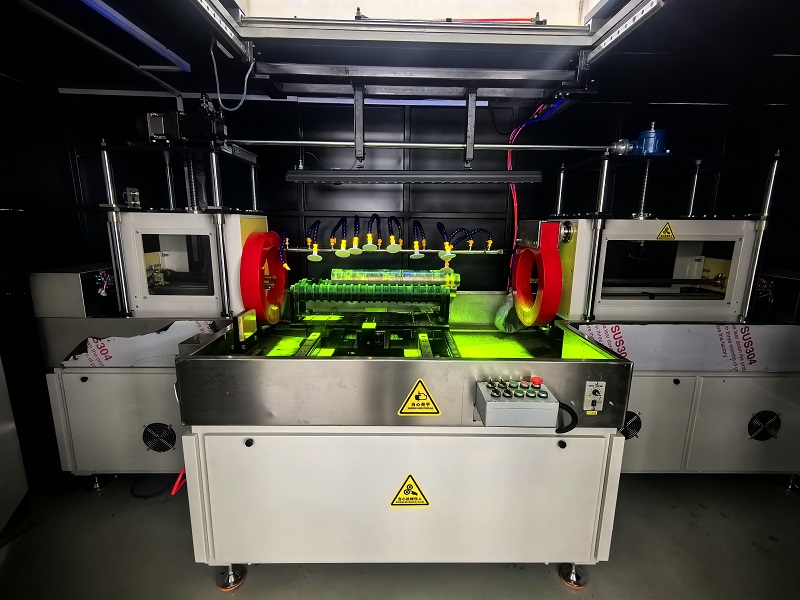

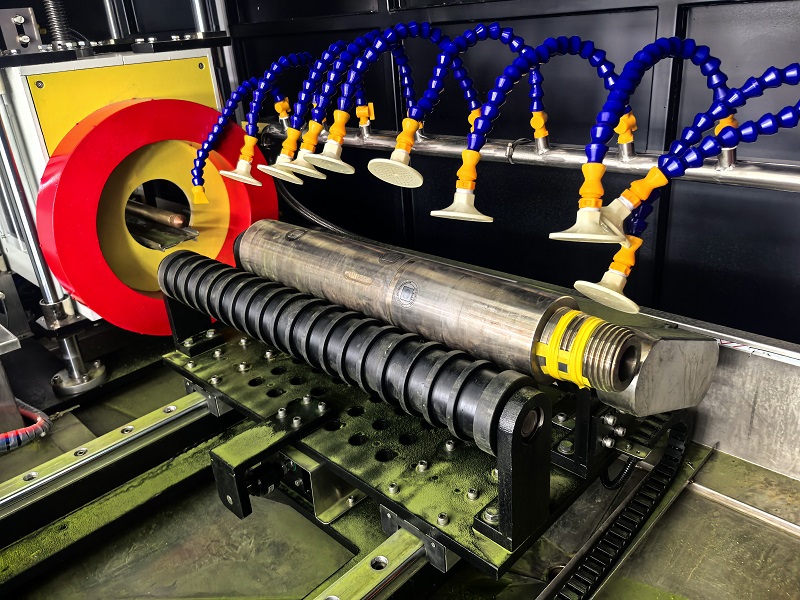

- Automated inspection process with conveyor or roller support for stable and consistent positioning

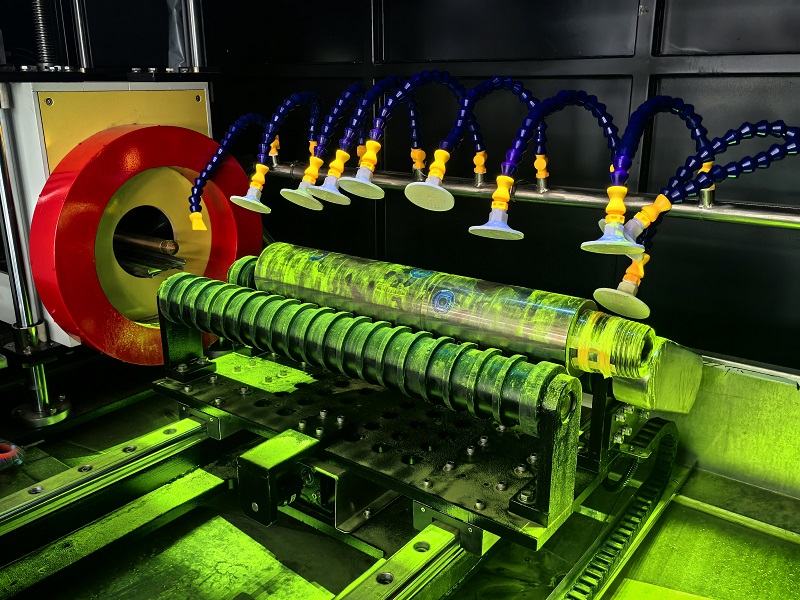

- UV lighting and darkroom design improve defect visibility and inspection accuracy
- PLC control system enables easy operation, process stability, and integration into production lines
The valve stem magnetic particle inspection machine is a high-precision non-destructive testing (NDT) system designed for reliable detection of surface and near-surface defects such as cracks, seams, and inclusions on valve rods, stems, and similar cylindrical components. It is widely used in oil & gas, petrochemical, marine, power generation, and industrial valve manufacturing industries where component safety and sealing performance are critical.
This system integrates advanced fluorescent magnetic particle inspection (MPI) technology with optimized coil and head magnetization methods, ensuring full circumferential and longitudinal coverage of the workpiece. The strong and stable magnetic field effectively reveals even fine defects that may lead to leakage or mechanical failure during service.
The machine is designed with a robust mechanical structure and optional automated handling system, including roller supports or conveyor-based transport, which guarantees smooth and stable positioning of long or heavy valve stems during inspection. Combined with a UV inspection booth and high-intensity ultraviolet lighting, operators can easily observe indications with high contrast and accuracy, significantly improving inspection reliability.
From a control perspective, the system adopts a PLC-based automation platform, enabling precise control of magnetization time, current parameters, and inspection cycles. This not only improves operational consistency but also reduces human error and labor dependency, making it suitable for integration into modern production lines.
For manufacturers aiming to upgrade quality assurance levels, this equipment provides significant value by reducing the risk of field failures, improving product qualification rates, and ensuring compliance with international NDT standards. It is an ideal solution for companies seeking stable and repeatable inspection performance in high-volume production environments.
