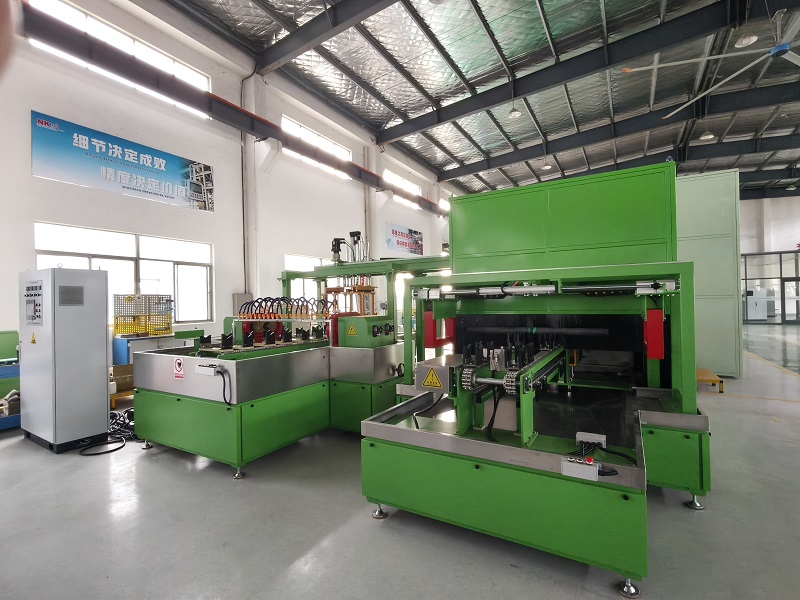

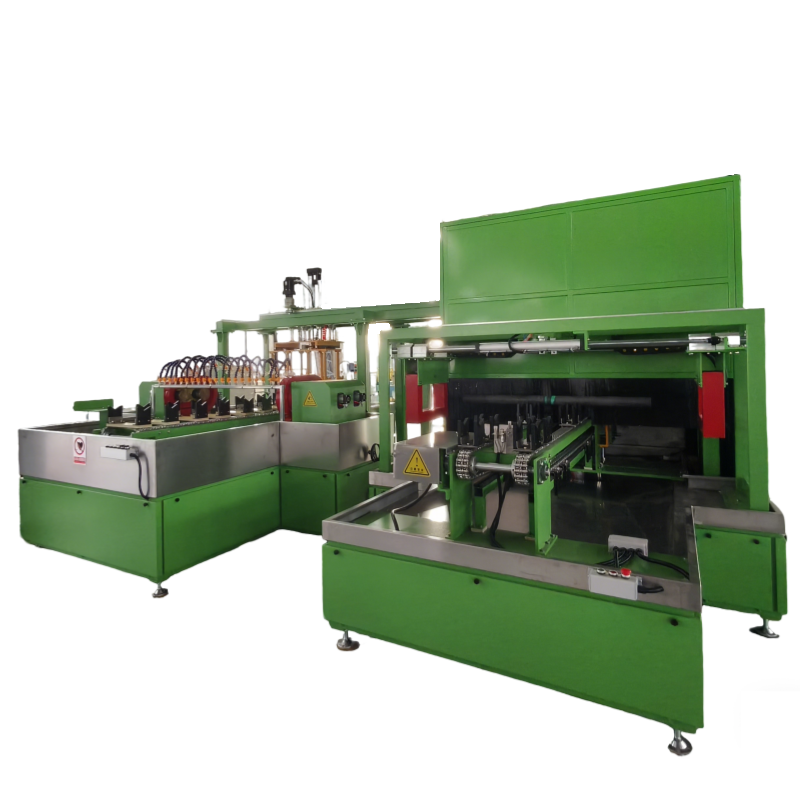

Fluorescent Magnetic Particle Inspection Line for Shafts, Stud Bolts and Threaded Rods
The fluorescent magnetic particle inspection line for shafts is an advanced automated non-destructive testing (NDT) solution designed for high-efficiency crack detection on cylindrical components such as shafts, stud bolts, and threaded rods. It is widely applied in automotive manufacturing, heavy machinery, aerospace components, and industrial fastener production, where surface integrity is critical for operational safety and reliability.

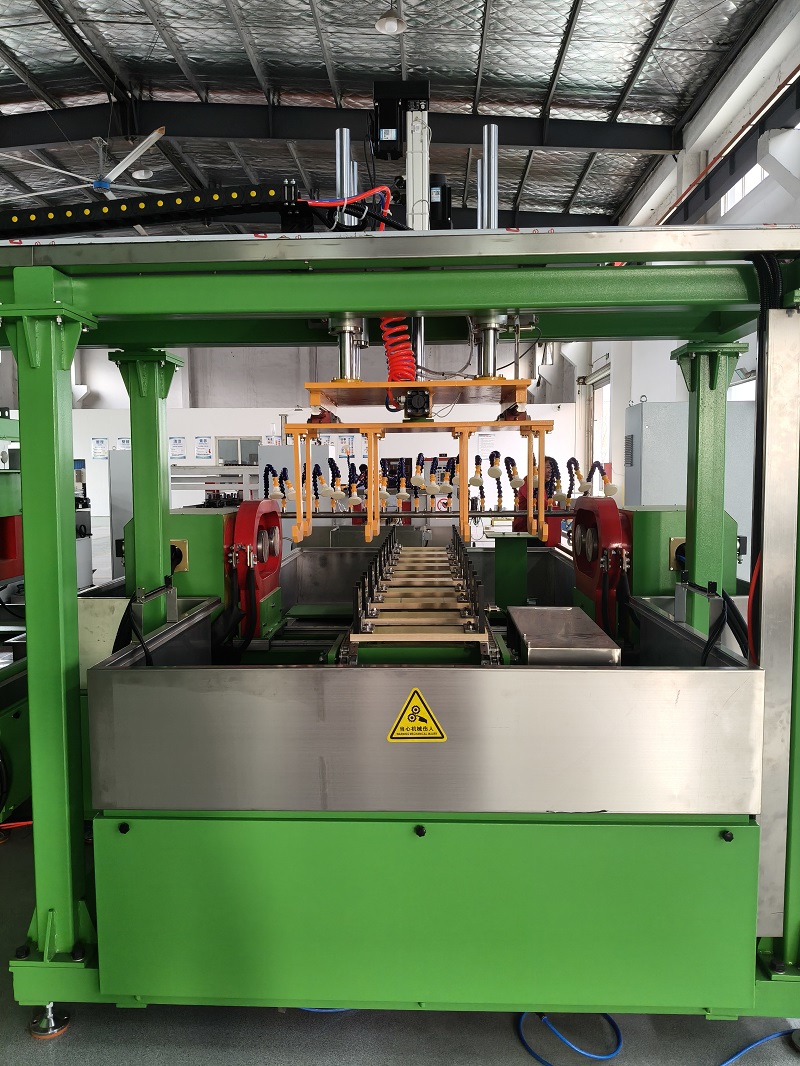

This system integrates a fully automated robotic handling unit and conveyor-based transport system, enabling continuous and stable movement of workpieces throughout the inspection process. The robotic arm ensures precise loading and unloading of shafts, reducing manual intervention, improving safety, and significantly increasing production efficiency.

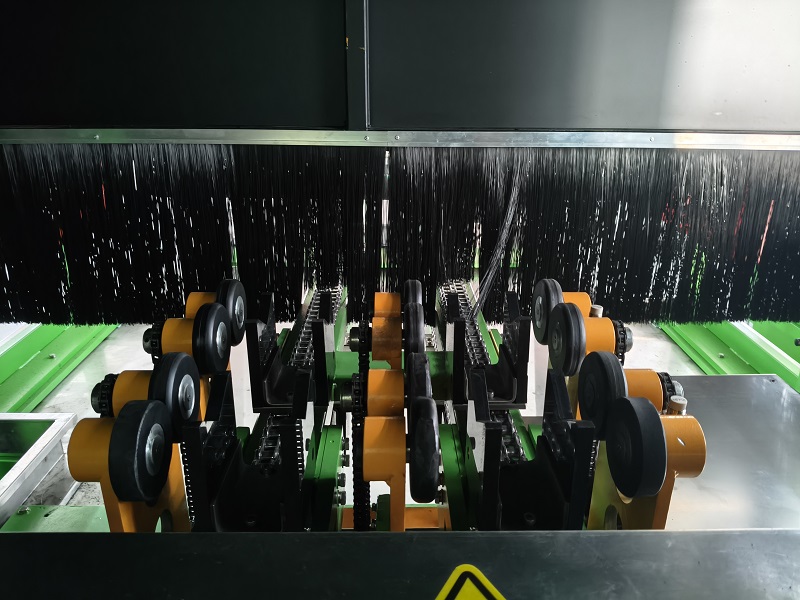

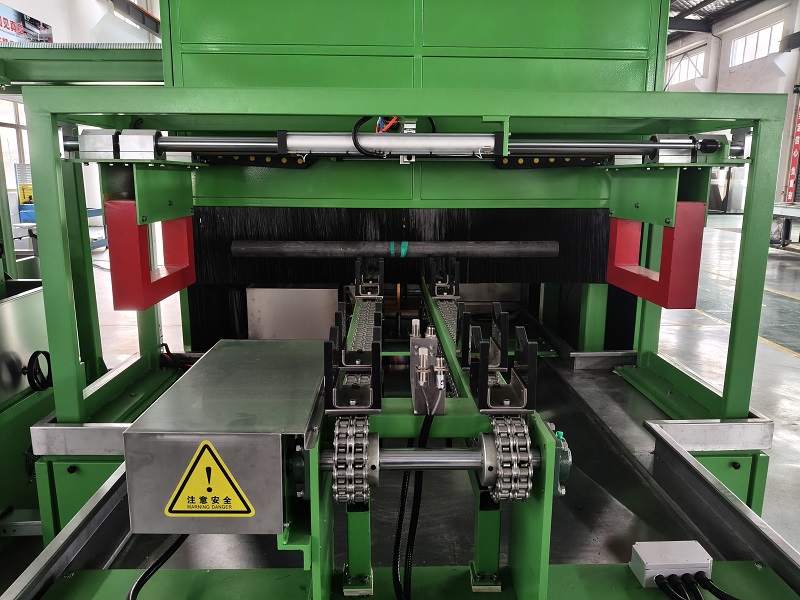

At the core of the system is an advanced fluorescent magnetic particle inspection (MPI) technology, which provides high-sensitivity detection of surface and near-surface defects. Combined with a coil magnetization system, the equipment generates a uniform magnetic field to ensure complete coverage of each shaft, allowing even micro-cracks to be clearly visualized under UV lighting conditions.
The system is controlled by a PLC-based automation platform, enabling precise control of inspection parameters, cycle timing, and process synchronization between robotic handling, magnetization, and detection stages. This ensures stable operation and consistent inspection quality, making it suitable for integration into modern smart manufacturing production lines.
For manufacturers, this solution delivers significant value by reducing labor costs, improving inspection accuracy, and ensuring zero-defect quality standards for critical shaft components. It also minimizes human error and enhances production throughput, making it an ideal choice for high-volume industrial environments.
👉 Learn more about our shaft magnetic particle inspection system and how it improves defect detection efficiency and production line automation in modern industrial applications.
