Introduction
With the rapid development of the automotive industry, the quality requirements for safety-critical components are becoming increasingly strict. As one of the key suspension components, the control arm must maintain high strength and reliability during vehicle operation.
To ensure the safety and durability of control arms, manufacturers widely use magnetic particle inspection (MPI) technology to detect surface and near-surface defects such as cracks, laps, and fatigue damage.
Our automated control arm magnetic particle inspection line integrates automatic loading, magnetization, fluorescent magnetic particle inspection, demagnetization, cleaning, and unloading processes, providing an efficient and reliable solution for automotive component manufacturers.
What Is a Control Arm Magnetic Particle Inspection Line?
A control arm MPI inspection line is an automated non-destructive testing system specially designed for inspecting automotive suspension components.
The system uses magnetic fields and fluorescent magnetic particles to reveal hidden defects that cannot be detected by visual inspection alone. When a control arm is magnetized, discontinuities on or near the surface create leakage fields, attracting magnetic particles and forming visible indications under UV light.
This process allows manufacturers to quickly identify cracks and ensure that every component meets strict quality standards.
Key Features of Automated Control Arm MPI System
1. Fully Automatic Inspection Process
The production line can integrate multiple processes:
- Automatic loading and positioning
- Magnetic particle application
- Multi-directional magnetization
- Fluorescent inspection under UV light
- Automatic demagnetization
- Cleaning and drying
- Inspection data recording and traceability
The automated design significantly improves inspection efficiency, reduces manual operation errors, and ensures stable inspection quality.
2. Multi-Directional Magnetization for Complete Defect Detection
Control arms may develop cracks in different directions during forging, machining, and service conditions.
The MPI system provides:
- Circumferential magnetization
- Longitudinal magnetization
- Combined magnetic field inspection
This ensures comprehensive detection of defects in various orientations and improves inspection reliability.

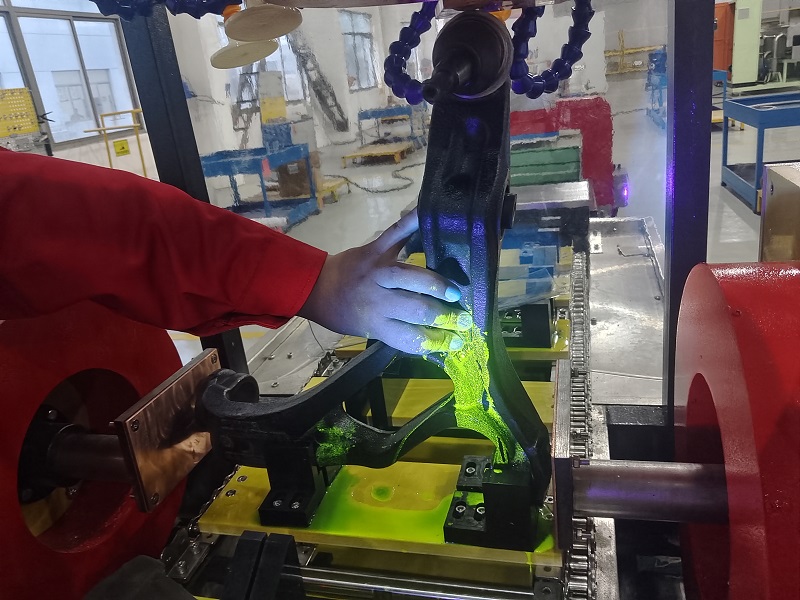

3. Fluorescent Magnetic Particle Inspection Technology
The control arm inspection line uses fluorescent magnetic particle testing technology combined with UV lighting systems.
During inspection:
- The workpiece is magnetized by a controlled magnetic field
- Magnetic particles accumulate at defect areas due to leakage fields
- Defect indications become visible under UV light
This method provides high sensitivity for detecting surface and near-surface cracks, making it suitable for critical automotive components.
4. High Efficiency for Mass Production
For automotive manufacturers, production efficiency is critical.
The automated control arm inspection line is designed for:
- High-volume production
- Continuous operation
- Integration with existing manufacturing lines
- Reduced labor requirements
It is suitable for OEM suppliers and automotive component factories requiring stable quality control.
Applications of Control Arm MPI Inspection Equipment
The system is widely used for inspecting:
- Forged aluminum control arms
- Steel control arms
- Suspension components
- Steering components
- Automotive safety parts
- Railway and industrial components
Compliance With International NDT Standards
The control arm MPI system can be designed according to international standards, including:
- ASTM E1444 / ASTM E709
- ISO 9934
- IATF 16949 quality requirements
- Customer-specific automotive inspection specifications
Why Choose an Automated Control Arm Inspection Line?
Compared with traditional manual inspection methods, an automated MPI production line offers:
✔ Higher inspection consistency
✔ Improved production efficiency
✔ Reduced operator dependence
✔ Automatic inspection process control
✔ Better quality traceability
✔ Easy integration with smart manufacturing systems
Conclusion
A reliable control arm magnetic particle inspection line is essential for automotive manufacturers to guarantee component safety and production quality.
By combining advanced MPI technology and automated control systems, modern inspection equipment provides an efficient solution for automotive parts quality management.
For manufacturers looking for an automatic control arm crack detection system, our customized MPI solutions can be designed according to different production requirements, production capacities, and inspection standards.
