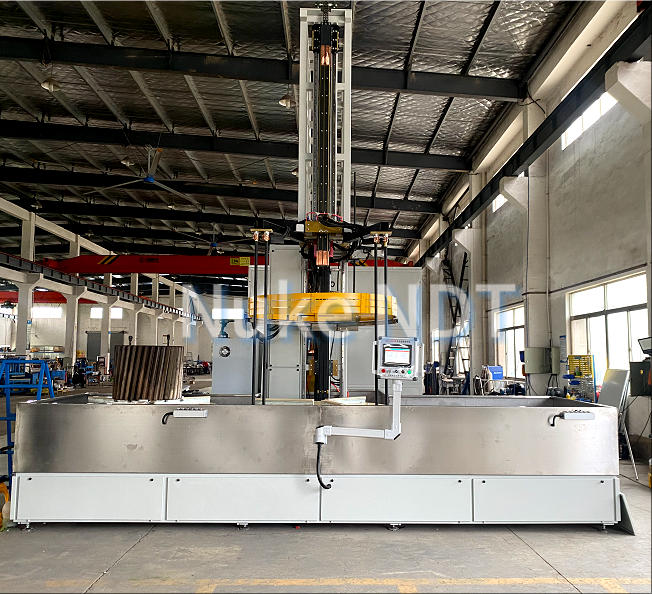

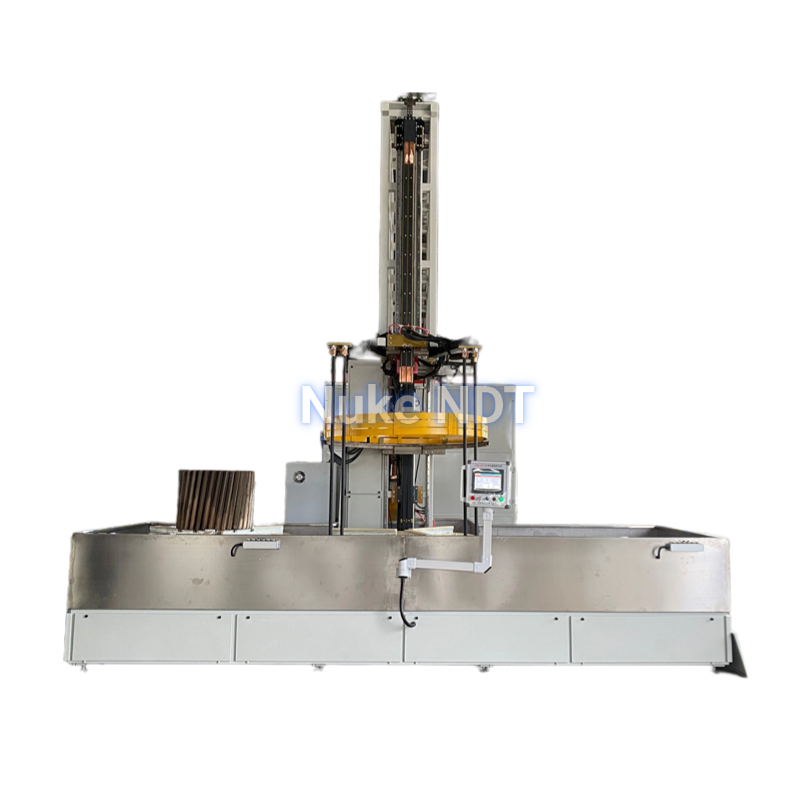

CNK-8000 Fluorescent Magnetic Particle Inspection Machine 1

CNK-8000 Fluorescent Magnetic Particle Inspection Machine 2

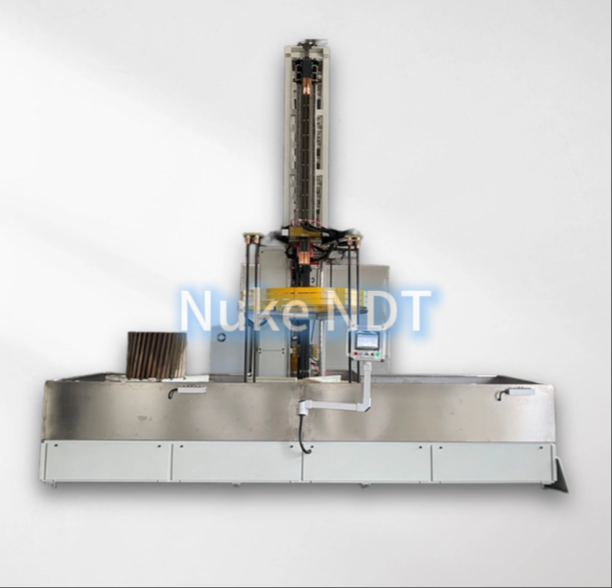

CNK-8000 Fluorescent Magnetic Particle Inspection Machine

The CNK-8000 Fluorescent Magnetic Particle Inspection Machine is primarily used for testing to detect surface, end-face, and near-surface cracks.

Vertical structure with circumferential magnetization using multi-conductor induction and longitudinal magnetization via a closed magnetic yoke.
Enables one-time inspection of complex components such as planetary gears and similar parts.
Integrated demagnetization function with attenuation control.
Equipped with central magnetization station and loading/unloading stations on both sides, allowing simultaneous part placement and inspection.

Get A Free Quote

The CNK-8000 Fluorescent Magnetic Particle Inspection Machine consists of several main components, including the electrical control system, magnetization power system, main frame structure, bracket rotation mechanism, magnetic suspension spraying and circulation system, and fluorescent observation system.

No.	Specification Item	Technical Data
1	Power Supply	Three-phase four-wire 380V ±10%, 50Hz; Max instantaneous power: 400 kW; Current: 800 A (800 A circuit breaker, 120 mm² 3-phase 5-core copper cable); 300 kW reserved
2	Magnetization Modes	Circular magnetization, longitudinal magnetization, combined magnetization
3	Magnetization Sensitivity	Type-A 15/50 reference test piece clearly displayed
4	Control Modes	Manual and automatic
5	Circular Magnetization Current	AC 0–4000 A × 6 turns (RMS); digital setting and display; closed-loop control; automatic tracking; power-off phase control
6	Longitudinal Magnetization Current	AC 0–3000 A × 9 turns (RMS); digital setting and display; closed-loop control; automatic tracking; power-off phase control
7	Inspection Areas	Tooth surface, tooth top, tooth root, outer cylindrical surface

Get A Free Quote Now

Products Categories

Non-Destructive Testing

Cleaning Machine

Penetrant Testing Equipment

Temperature Measurement

Magnetic Particle Inspection Machine

Accessories

Get A Free Quote

magnetic partical flaw detector

Inspection machine, with their unique non – destructive testing capabilities, are vital in multiple industries.
In aerospace, they detect minuscule cracks in crucial aircraft parts like engine blades and landing gears, ensuring flight safety. Traditional methods may damage these expensive, precision – made components.
For automotive manufacturing, they identify defects in key parts such as engine blocks and axles early. This helps prevent costly recalls and guarantees vehicle reliability. Their fast and accurate non – destructive testing sets them apart.
In the oil and gas industry, flaw detectors monitor pipelines and storage tanks for internal corrosion and weld defects. This non – invasive approach allows continuous infrastructure inspection without disrupting operations.
In short, flaw detectors’ ability to conduct accurate non – destructive testing makes them essential for ensuring product quality, safety, and operational integrity across various sectors.

More Information

Magnetic Particle Inspection Machine

Nuke Non – Destructive Testing Co., Ltd. is a key high – tech enterprise specializing in the research, development, and sales of non – destructive testing equipment such as magnetic particle inspection machine, magnetic particle flaw detection instruments, demagnetizers, cleaning machines, penetrant flaw detectors, portable magnetic particle flaw detectors, and mobile magnetic particle flaw detectors.

The company adopts a modern enterprise management model and has established a complete manufacturing process and marketing service system for flaw detectors and detection instruments. Its products are designed with the aid of computer – assisted design, comply with the industry standard JB/T8290 – 1998 “Magnetic Particle Flaw Detectors”, and also refer to American MIL and German DIN standards. At present, these products are widely used in the non – destructive testing fields of industries including aerospace, aviation, military industry, railway, automotive, oilfield, shipbuilding, boilers, pressure vessels, bearings, gears, springs, tractors, diesel engines, motorcycles, power, chemical industry, standard parts manufacturing, and machinery manufacturing.

Relying on technological innovation and management innovation, the company continuously strengthens its core competitiveness and has won unanimous praise from users.
