Large Gear Ring Magnetic Particle Testing Machine

Large Gear Ring Magnetic Particle Testing Machine Customized NDT Equipement

Heavy-duty 4.5m Gear Ring Magnetic Particle Inspection Machine for industrial NDT testing with high accuracy and durability.

Extra-Large Capacity – Designed for gear rings up to 4.5 meters in diameter, suitable for oversized industrial components.
High Detection Sensitivity – Ensures accurate identification of surface and near-surface defects.
Heavy-Duty Construction – Robust frame and components for long-term stability under continuous operation.
Customizable Design – Configurable magnetization modes, detection parameters, and workpiece loading methods.
Efficient Operation – Automated process options reduce inspection time and improve productivity.

Get A Free Quote

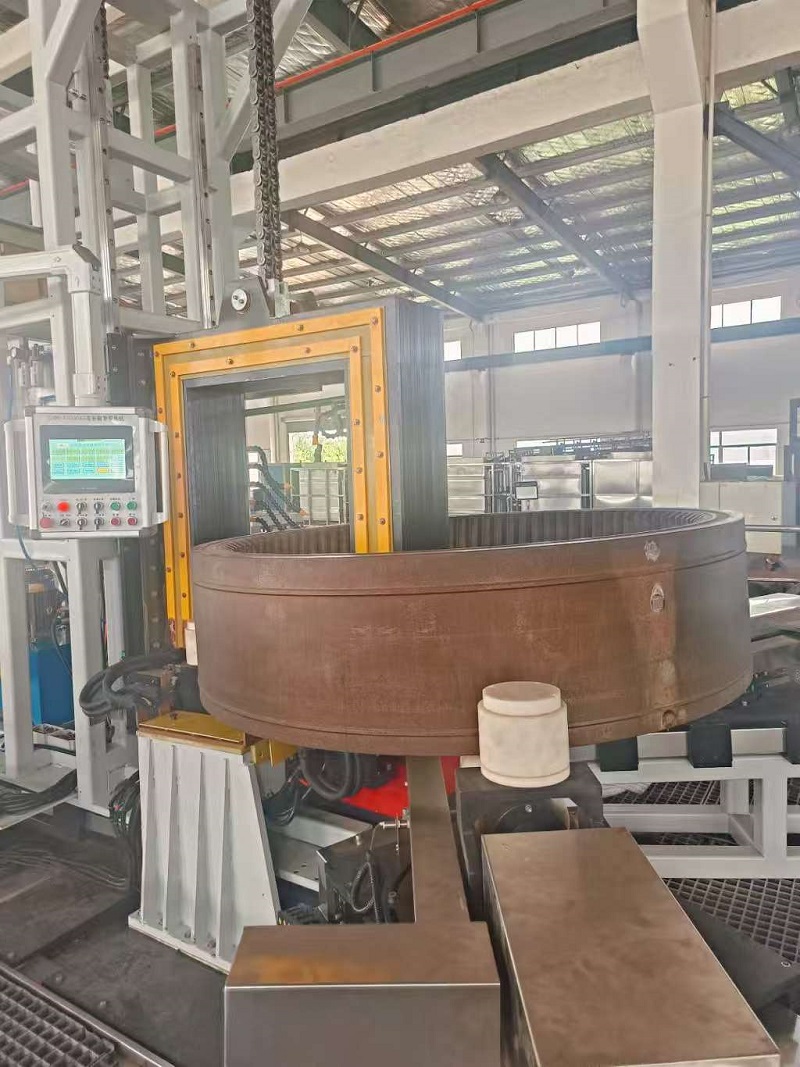

The 4.5m Large Gear Ring Magnetic Particle Inspection (MPI) Machine is a heavy-duty NDT equipment solution designed for precise detection of surface and near-surface defects in oversized gear rings, flanges, and similar large-diameter components. Engineered with a robust structure and advanced magnetization technology, it ensures stable operation and high detection sensitivity, even under demanding industrial conditions.

With its extra-large inspection capacity of up to 4.5 meters in diameter, this MPI machine is ideal for applications in metallurgy, mining, shipbuilding, wind power, and heavy machinery manufacturing. The system can be customized with multiple magnetization modes, automatic workpiece rotation, and optimized spraying systems to meet different inspection standards, including ASTM and ISO.

By adopting this large gear ring magnetic particle testing machine, customers can significantly improve defect detection accuracy, reduce inspection time, and enhance overall production efficiency—ensuring both safety and quality in their manufacturing process.

Get A Free Quote Now

Products Categories

Non-Destructive Testing

Demagnetizer

Fluorescent Penetrant Inspection Lines

Temperature Measurement

Magnetic Particle Inspection Machine

Accessories

Get A Free Quote

The 4.5m Large Gear Ring Magnetic Particle Inspection (MPI) Machine is specifically designed for non-destructive testing of oversized circular components. It is widely used in:

Metallurgy and Steel Industry – Inspection of large gear rings, couplings, and forged steel components to ensure structural integrity.
Mining and Heavy Equipment Manufacturing – Detection of cracks and defects in large gears, drive rings, and transmission components.
Wind Power Generation – Quality control for wind turbine gear rings and main shaft flanges to prevent operational failures.
Shipbuilding and Marine Engineering – Testing of propulsion gear systems and large rotary components for safety and performance.
Power Transmission and Industrial Machinery – Verification of large transmission gears and rotary parts for reliability in continuous operation.

By serving these industries, the machine plays a crucial role in ensuring product quality, operational safety, and compliance with international NDT standards.

More Information

Large Gear Ring Magnetic Particle Testing Machine Customized NDT Equipement

Nuke Non – Destructive Testing Co., Ltd. is a key high – tech enterprise specializing in the research, development, and sales of non – destructive testing equipment such as magnetic particle flaw detectors, magnetic particle flaw detection instruments, demagnetizers, cleaning machines, penetrant flaw detectors, portable magnetic particle flaw detectors, and mobile magnetic particle flaw detectors.

The company adopts a modern enterprise management model and has established a complete manufacturing process and marketing service system for flaw detectors and detection instruments. Its products are designed with the aid of computer – assisted design, comply with the industry standard JB/T8290 – 1998 “Magnetic Particle Flaw Detectors”, and also refer to American MIL and German DIN standards. At present, these products are widely used in the non – destructive testing fields of industries including aerospace, aviation, military industry, railway, automotive, oilfield, shipbuilding, boilers, pressure vessels, bearings, gears, springs, tractors, diesel engines, motorcycles, power, chemical industry, standard parts manufacturing, and machinery manufacturing.

Relying on technological innovation and management innovation, the company continuously strengthens its core competitiveness and has won unanimous praise from users.
