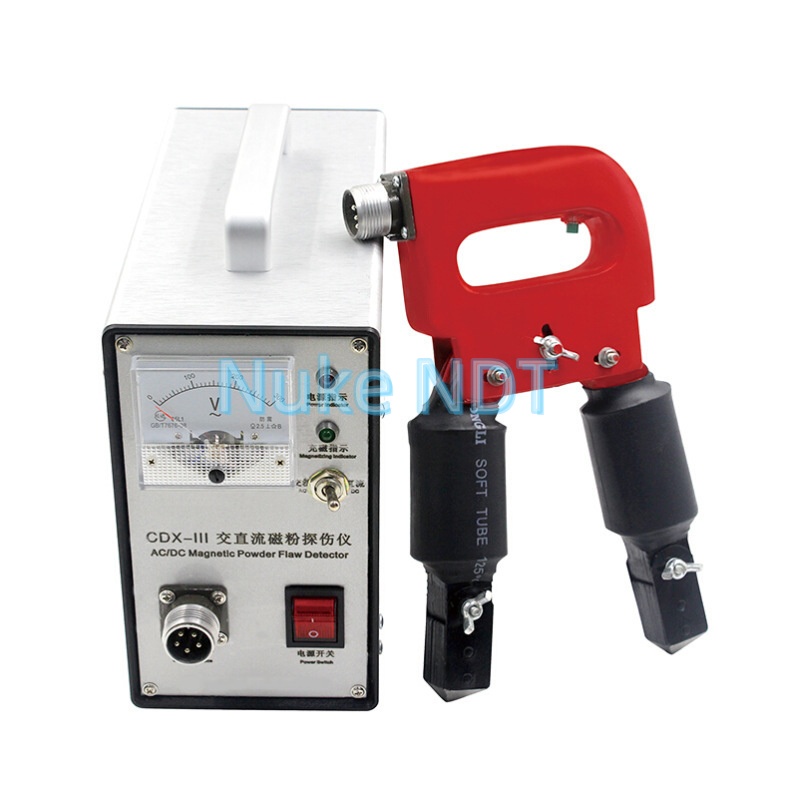

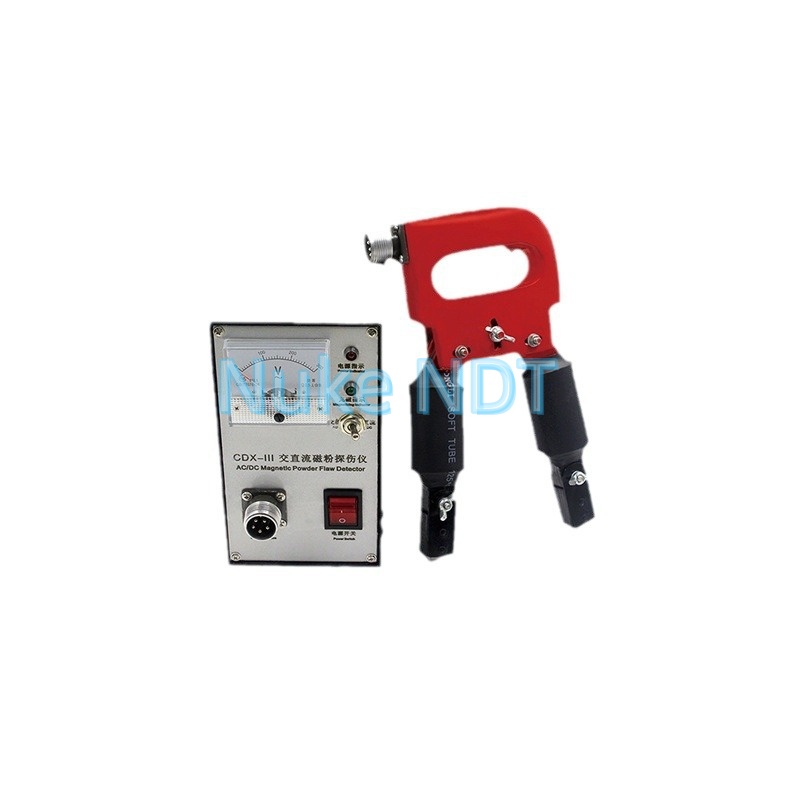

CDX-III Portable Multi-purpose Magnetic Particle Flaw Detector

Portable AC/DC flaw detector with strong lifting force, high sensitivity, ideal for B2B industrial NDT applications.

  • AC/DC Dual Mode Output
    Supports both AC and DC magnetization for versatile flaw detection needs.

  • High Lifting Force & Sensitivity
    Ensures reliable detection of fine surface and subsurface cracks using Type A test block.

  • Portable & Compact Design
    Lightweight, small-sized unit ideal for on-site and field inspections.

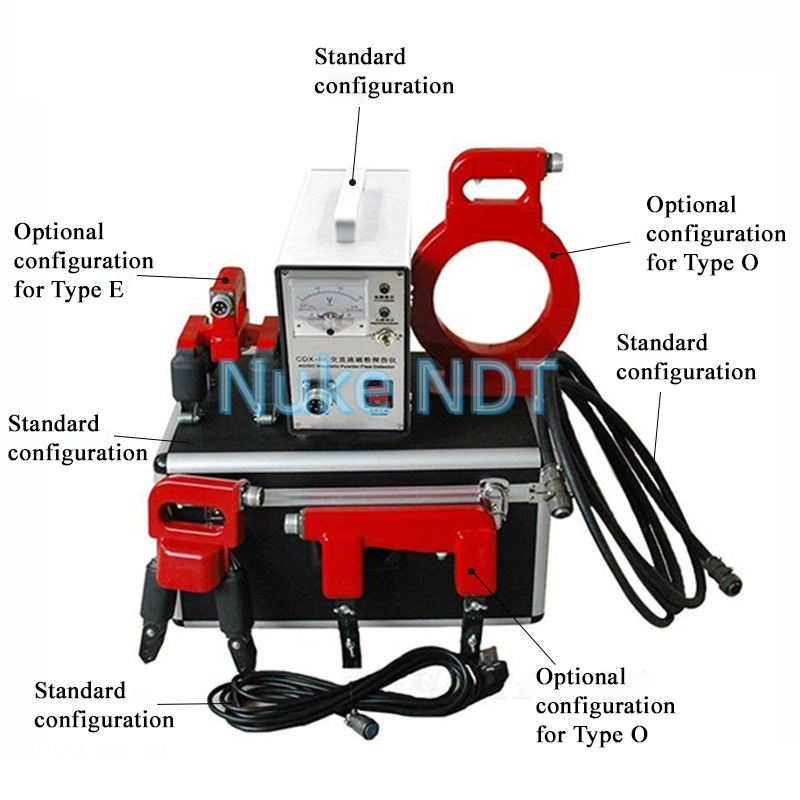

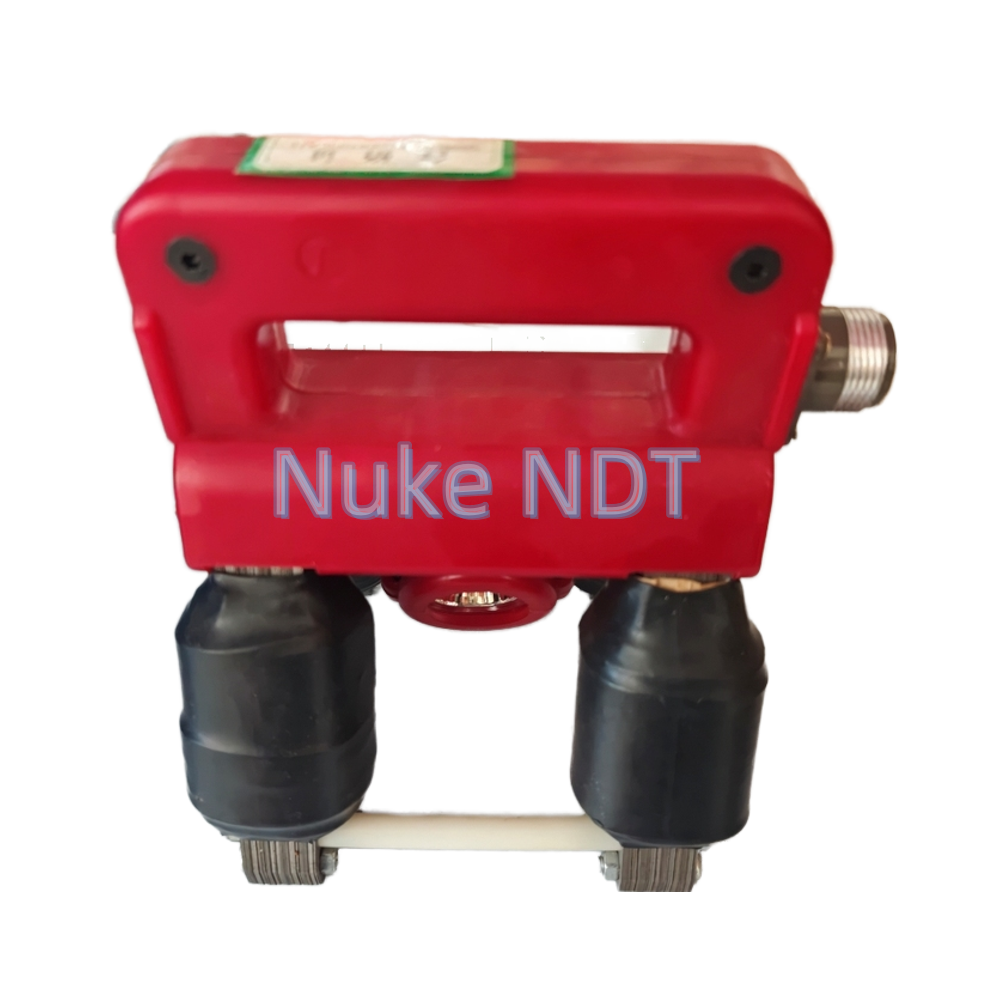

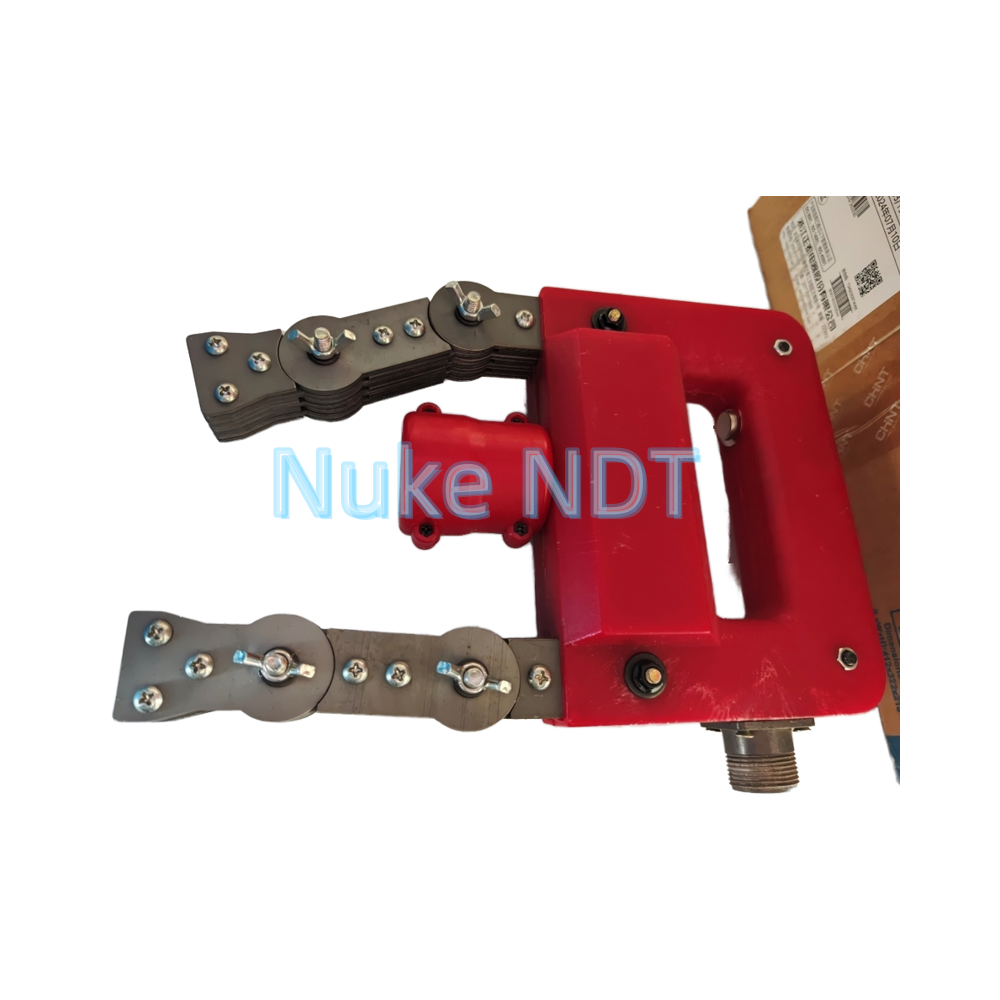

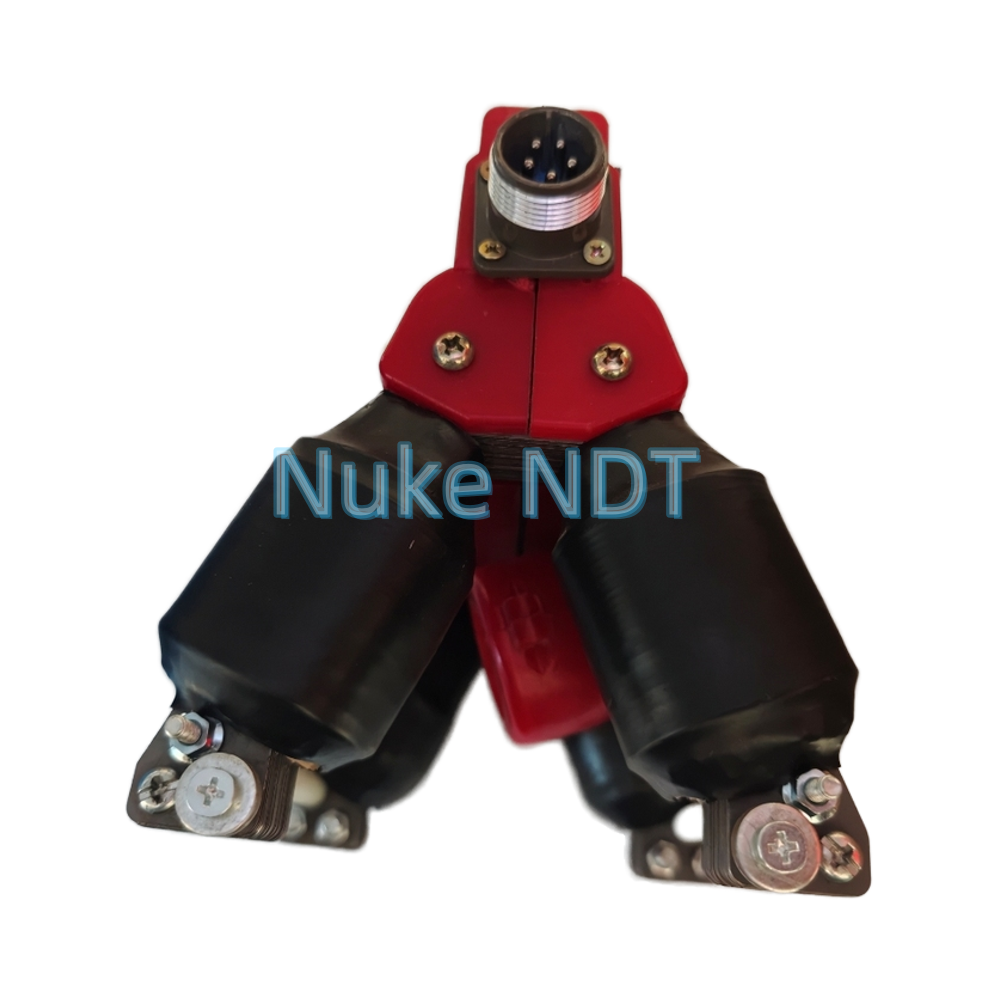

  • Multiple Probe Options
    Includes 4 interchangeable probes for various applications: welds, curved surfaces, internal corners, etc.

  • 100% Duty Cycle Operation
    Designed for continuous industrial use without overheating or downtime.

The CDX-III Multi-purpose Magnetic Particle Flaw Detector uses an AC magnetic yoke to magnetize ferromagnetic workpieces for flaw detection. It is capable of magnetizing a variety of components, including localized inspection of large parts. It supports both the current flow method and residual magnetism method for magnetic particle testing.

No. Item Specification
1 Input Voltage AC 220V ±10%
2 Output Voltage AC 36V; DC 24V
3 Output Current >8 A
4 Duty Cycle 100%
5 Flaw Detection Sensitivity Clear indication with Type A reference block
6 Probe Cable 5-core × 1mm², 3 meters
7 Power Cable 1.5 meters
8 Main Unit Dimensions (L × W × H) Approx. 300 × 150 × 220 mm
9 Weight (including main unit & probe) 25 kg
Products Categories
Get A Free Quote
Contact Form Demo (#3)

The CDX-III Magnetic Particle Flaw Detector is widely used in various industries for the detection of surface and near-surface defects in ferromagnetic materials. Its versatility, portability, and multiple probe options make it ideal for the following applications:

✅ 1. Weld Inspection
Butt welds, fillet welds, and corner welds

Particularly suitable for pressure vessel and structural weld inspection

✅ 2. Pipeline and Pressure Vessel Testing
On-site inspection of storage tanks, pipelines, and pressurized systems

Localized inspection without the need to move large structures

✅ 3. Automotive and Railway Industry
Inspection of axles, gears, brake parts, and welded components

Detection of fatigue cracks and stress corrosion defects

✅ 4. Aerospace and Aviation Maintenance
Inspection of aircraft components for surface cracks or fatigue defects

Suitable for maintenance, repair, and overhaul (MRO) operations

✅ 5. Power Generation and Petrochemical Equipment
Inspection of turbines, generators, and refinery components

Detection of stress-induced cracks due to thermal cycling or pressure

✅ 6. Heavy Machinery and Castings
Inspection of cast, forged, or machined parts for surface defects

Ideal for components with complex shapes

✅ 7. On-site Maintenance and Field Inspection
Lightweight and portable for field applications

Can be used in confined spaces or hard-to-reach areas
